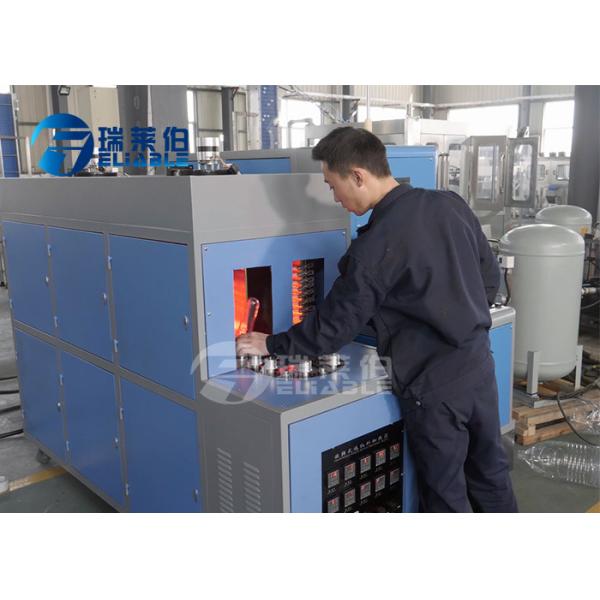

Barrel Making Plastic Bottle Blowing Machine Automatic Energy - Saving

Taizhou Huyang Reliable Machinery Co.,Ltd

Barrel Making Plastic Bottle Blowing Machine Automatic Energy - Saving

  • 1
  • 2
  • 3

Brand Name : Reliable

Model Number : RM-5L

Certification : CE ISO SGS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set/Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month bottle blow molding machine

Delivery Time : 25 working days

Packaging Details : Excellent Quality 5L Plastic Bottle Blowing Machine Semi Automatic PET Blowing Machine With PE Film Wrapped Standard Container According To Requirement

Grade : Semi-Automatic

Driven Type : full Electric

Voltage : 220V/380V 50Hz

Usage : Bottle Blowing / Making Machine

Material : SUS304/316

Warranty : One Year

Plastic processed : PET

Contact Now

5L Plastic Barrel Bottle Blowing Making Molding Machine Automatic

Machine Specifications:

1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customer

Feature:

1. Advanced PLC control system with a use-friendly control panel

2. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.

3. Multiple Reliable sensor systems monitors the machine's automatic function

4. Equipped with special designed air storage unit

Technology Parameter

Container
Max.Container Volume Itr 6
Max.Neck Diameter mm 120
Max.Container Diameter mm 185
Max.Container Height mm 380

RM-5L
Molding
Clamping force
kg
26000
Clamping stroke
mm
280
Stretching stroke
mm
450
Bottle Stroke
mm
/
Cavity Spacing
mm
90-120
Number of Cavity
Cavities
1
Carriage Unit
pcs
96
Theoretical Output
bph
300-500
Electrical System
Total Power
kw
42
Heating Power
kw
40
Number of Lamp Layers
Layers
10
Air System
Operating Pressure
kg/cm²
7-9
Low Pressure Air Consumption
Ltr/min
600
Blowing Pressure
kg/cm²
20-30
High Pressure Air Consumption
Ltr/min
1600
Chiller
Operating Pressure
kg/cm²
2-4
Temperature Range
10-12
Consumption
kcal/hr
2000
Flow Rate
Ltr/min
200
Main Machine
(Blower)
Blower Dimensions
mm(L*W*H)
1950*650*1750
Blower Weight
kg
700
Main Machine
(Heater)
Heater
Dimensions
mm(L*W*H)
2170*670*1600
Heater Weight
kg
400


Barrel Making Plastic Bottle Blowing Machine Automatic Energy - Saving
Machine matched:

No Name Type Qty
1 Blow Molding Machine RM-5000 1set
2 HP Air Compressor 1.2m3/mim30Kg 1set
3 Air dryer 2.0m3/min30kg 1 set
4 Air filter 2.0 m3/min 30kg 2sets
5 Water chiller 5HP 1 set
8 Mould 10L 1 set

Air compressor Unit 1.2M3/30KG
Volume M3 1.2
Pressure Kg 30
Speed r/min 800
Power KW 18.5
Overall Dimension mm 2000*1100*1600
Weight kg 620
